ESP32-C3 Super Mini build

This build requires a basic understanding of how the ESP32 works. While the wiring isn’t overly complex, precision is essential since the ESP32 is sensitive to voltage and current spikes.

Parts

  • ESP32-C3 Super Mini
  • ESP32-C3 Baseboard
  • Dupont wire
  • Allan Universal Coinslot
  • 16x2 LCD with i2C
  • 12V 5A power supply
  • Single Channel relay (5V)
  • QC3.0 Charging module
  • Led frame (Optional)
**Available in both blue and orange app

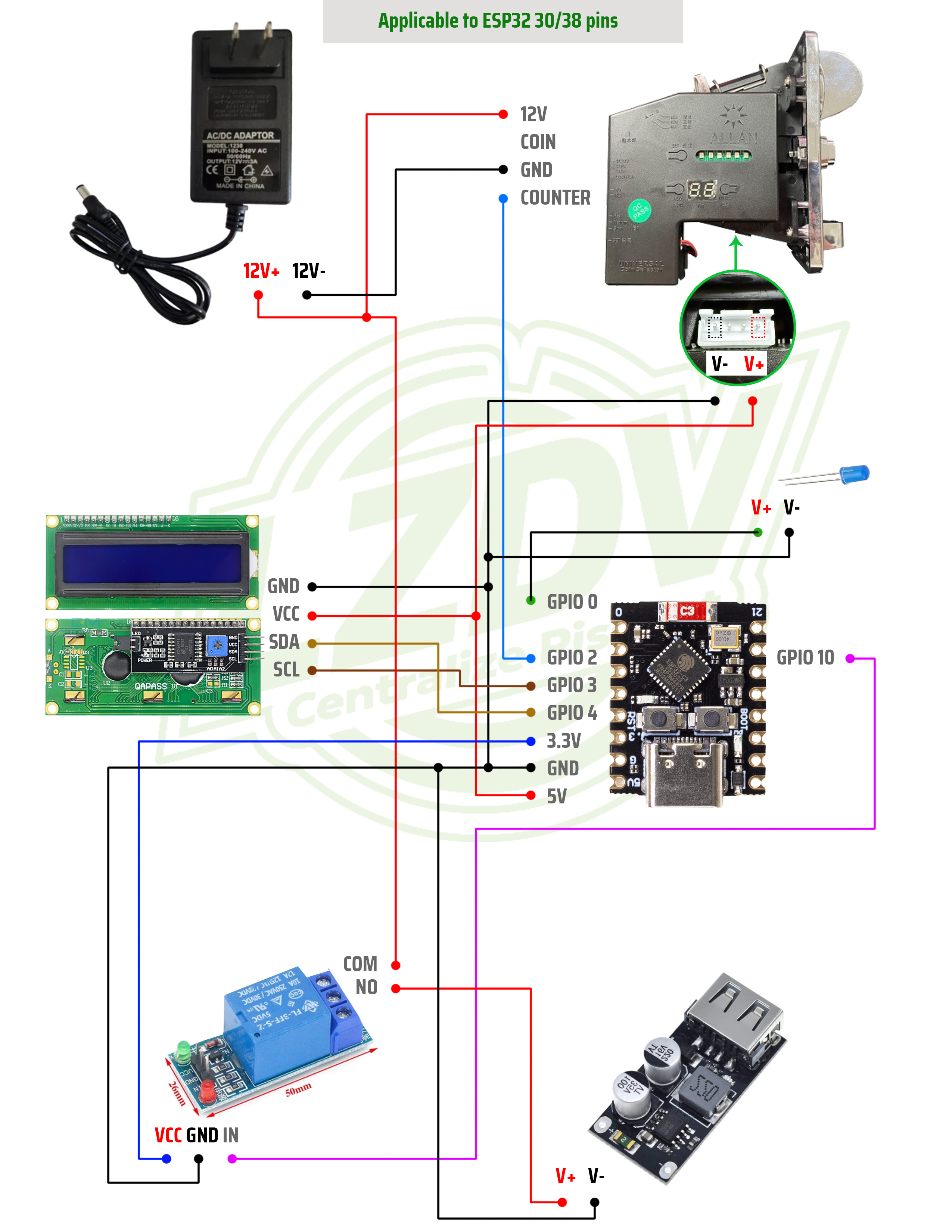

Wiring Diagram

ESP32-C3

Video tutorial
