Centralized build
This build requires a basic understanding of how the ESP8266 works. While the wiring isn’t overly complex, precision is essential since the ESP8266 is sensitive to voltage and current spikes.
Parts
- ESP8266 Nodemcu V3
- ESP8266 Baseboard
- Dupont wire
- Allan Universal Coinslot
- 12V 5A power supply
- Single Channel relay (5V)
- QC3.0 Charging module
- Led frame (Optional)

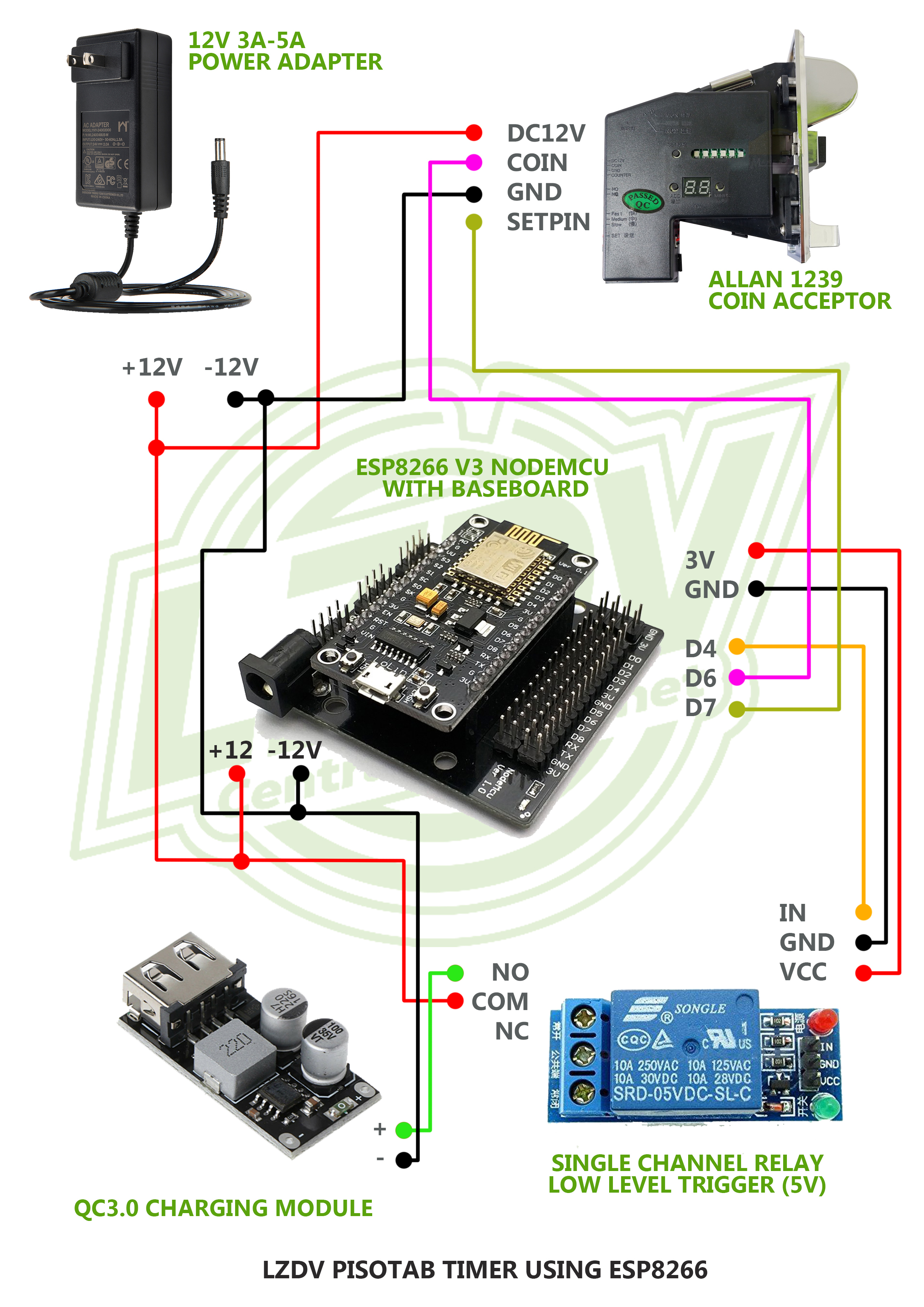

Wiring Diagram
